Alat untuk mengukur emisi gas buang untuk kendaraan roda 2 dan 4 yang berbahan bakar bensin. Dengan parameter yang dapat diukur antara lain CO, CO2, O2, NO.
› One For All - Instrument untuk pengukuran berbagai parameter gas buangan kendaraan bermotor
› Easy to Use - Mudah digunakan, sistem yang tidak rumit, dan dilengkapi dengan buku petunjuk berbahasa Indonesia.
› EHIS Support - Didukung oleh sistem aplikasi EHIS yangmembantu anda begitu mudah membuat laporan hasil pengukuran di mana saja.
› International Standard - Sudah memenuhi standar internasional BAR-90 / BAR-97 / OIML Class 1 Gas / Canada Air Care standards.
› Good Performance - Performa alat yang baik dalam mengukur gas buangan kendaraan, respon cepat, pembacaan yang akurat, memiliki data recorder, dan LCD pengukuran.

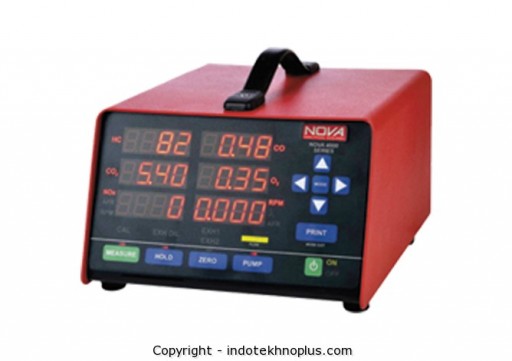

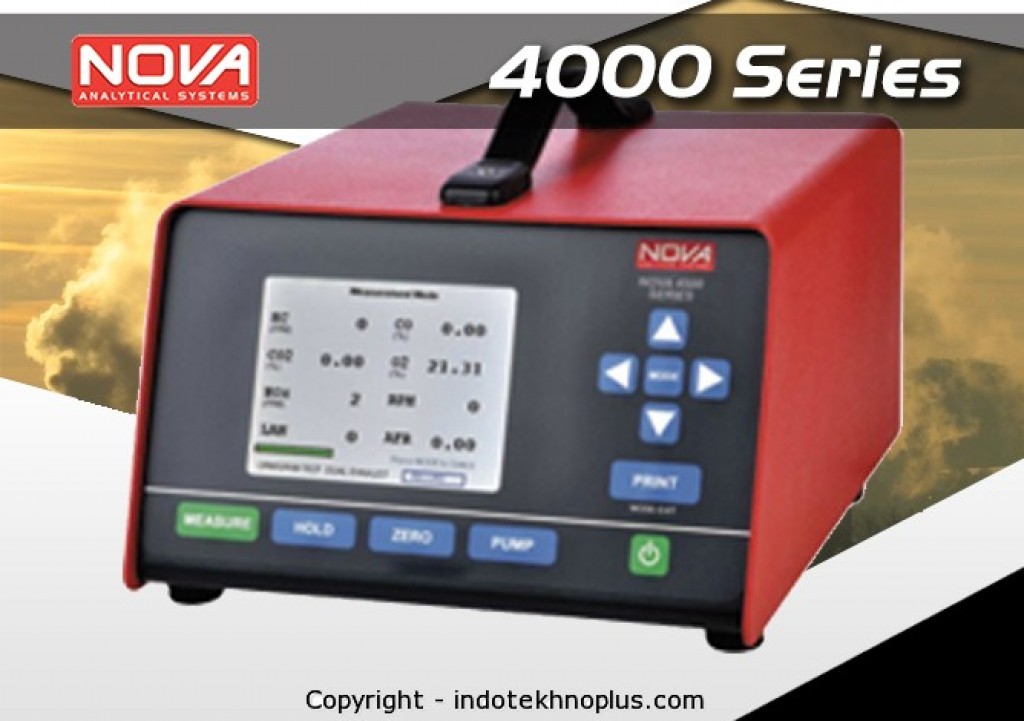

| Portable 5 Gas Engine Exhaust Analyzer | ||||||||||||||
| Parameter : O2, CO, CO2, HC & NO, RPM | ||||||||||||||
| Screen : LCD display | ||||||||||||||
| • | Method of Detection | : | CO, CO2, and HC by infrared detector / NO and O2 by electrochemical | ||||||||||||||||||||||||||||||||||||
| sensor RPM by inductive tachometer | |||||||||||||||||||||||||||||||||||||||
| • | Available Ranges | : | 0-25.0% O2 | 0-30,000 RPM (as kRPM) | |||||||||||||||||||||||||||||||||||
| 0-10.00% CO | 0-50% AFR calculation (air to fuel ratio) | ||||||||||||||||||||||||||||||||||||||
| 0-20.0% CO2 | 0-5% Lambda calculation | ||||||||||||||||||||||||||||||||||||||
| 0-10,000 PPM HC (as n-Hexane) | |||||||||||||||||||||||||||||||||||||||
| 0-5,000 PPM NOx (as NO only) | |||||||||||||||||||||||||||||||||||||||
| • | Resolution | : | 0.1% or 1% on % ranges, 0.01% on CO, 1 PPM on most PPM ranges, 1000 RPM | ||||||||||||||||||||||||||||||||||||
| • | Accuracy | : | ± 1% of full scale for O2, CO, CO2, and HCs; ± 2% of full scale for NO | ||||||||||||||||||||||||||||||||||||
| • | Response Time (T90) | : | 8-10 seconds | ||||||||||||||||||||||||||||||||||||
| • | Ambient Temperature Range | : | 2°C to 40°C (35°F to 113°F) | ||||||||||||||||||||||||||||||||||||
| • | Size And Weight | : | approx. 33.5W x 27.4L x 16.5D cm @ 4.1kg (13"W x 11"L x 6 1/2"D @ 9lbs) | ||||||||||||||||||||||||||||||||||||
| • | Power | : | 115 VAC or 220VAC, 50/60Hz. Also 12VDC for cigarette lighter socket | ||||||||||||||||||||||||||||||||||||
| • | Optional Outputs | : | 0-1, 0-5, 0-10 VDC, RS232 serial with custom protocol | ||||||||||||||||||||||||||||||||||||
| Supply With : | |||||||||||||||||
| - | Printer | ||||||||||||||||
| - | Data Logging PC Software | ||||||||||||||||
| - | Built-in Re-chargeable Battery | ||||||||||||||||
| - | Built-in Module RPM Measurement | ||||||||||||||||
| - | Manual book dengan Bahasa Indonesia | ||||||||||||||||
| - | Kartu Garansi | ||||||||||||||||
| - | Sample filter, flexible sample probe & | ||||||||||||||||
| - | hose, built-in sample pump, condensate filter | ||||||||||||||||
