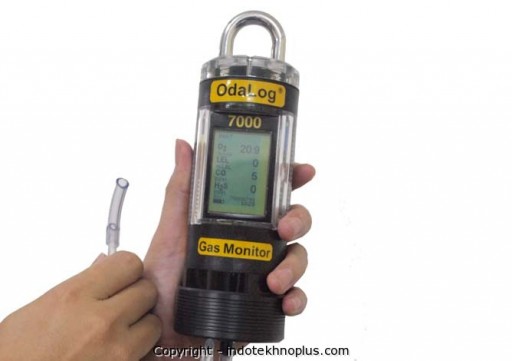

Alat untuk memonitor sekaligus 6 (enam) jenis kadar gas dalam udara di lingkungan ambient.
OdaLog 7000 Sensor Gas ( O2, LEL, CO&H2S, NO2, SO2 ), Charger , leather case, Calibration | |||||||||||||||||||||||||||||||||||
fitting, allen tool with magnetic base, carabiner, software datalogger odastat, Manual Inggris dan Bahasa | |||||||||||||||||||||||||||||||||||
Indonesia , Kartu Garansi dan Hard Carrying Case |
● | With simultaneous monitoring of up to 6 gases | ||||||||||||||||||||||||||||
● | Instrument Temp. range | : - 20˚C (14˚F) to 40˚C (104˚F) | |||||||||||||||||||||||||||
● | Instrument Relative | : 15-90% non-condensing | |||||||||||||||||||||||||||
Humidity Range | |||||||||||||||||||||||||||||
● | Ingress Protection | : IP66 | |||||||||||||||||||||||||||
● | External Dimensions | : Diameter 62mm (2.44”) x Height 196mm (7.72”) | |||||||||||||||||||||||||||
● | Instrument Weight | : 675 grams / 23.8 Oz | |||||||||||||||||||||||||||
● | Power Supply | : Ni-MH Integrated Battery Pack | |||||||||||||||||||||||||||
● | Battery Life | : Greater than 12 hours (for life of battery) | |||||||||||||||||||||||||||
● | Charging Time | : Less than 8 hours | |||||||||||||||||||||||||||
● | Alarm | : Multi-frequency alarm | |||||||||||||||||||||||||||
● | Data Logging Capacity | : Up to 500,000 readings in total | |||||||||||||||||||||||||||
● | Interval | : Selectable from 1 sec - 1 hour | |||||||||||||||||||||||||||
● | Data logging | : Capacity >7 weeks if 6 Gases | |||||||||||||||||||||||||||
● | Duration Example | : are logged once per minute | |||||||||||||||||||||||||||
(12hr shifts / 7 day week) | |||||||||||||||||||||||||||||
GAS | RANGE | RESOLUTION | |||||||||||||||||||||||||||
● | O2 Oxygen | 0-25% VOL | 0.1% VOL | ||||||||||||||||||||||||||
● | LEL As Calibrated | 0-100%LEL | 1% LEL | ||||||||||||||||||||||||||
● | CH4 Methane | 0-5% Vol | 0.01% VOL | ||||||||||||||||||||||||||
● | CH4 Methane | 5-100% VOL | 1% VOL | ||||||||||||||||||||||||||
● | CO2 Carbon Dioxide | 0-5% VOL | 0.01% VOL | ||||||||||||||||||||||||||
● | CO Carbon Monoxide | 0-500 ppm | 1 ppm | ||||||||||||||||||||||||||
● | H2S Hydrogen Sulphide | 0-100 ppm | 1 ppm | ||||||||||||||||||||||||||
● | NO2 Nitrogen Dioxide | 0-50 ppm | 0.1 ppm | ||||||||||||||||||||||||||
● | NO Nitric Oxide | 0-100ppm | 1 ppm | ||||||||||||||||||||||||||
● | SO2 Sulphur Dioxide | 0-50 ppm | 0.1 ppm | ||||||||||||||||||||||||||
● | Cl2 Chlorine | 0-20 ppm | 0.1 ppm | ||||||||||||||||||||||||||
● | NH3 Ammonia | 0-100 ppm | 1 ppm | ||||||||||||||||||||||||||
● | HCN Hydrogen Cyanide | 0-50 ppm | 1 ppm | ||||||||||||||||||||||||||
● | PH3 Phosphine | 0-5 ppm | 0.1 ppm |
